Description

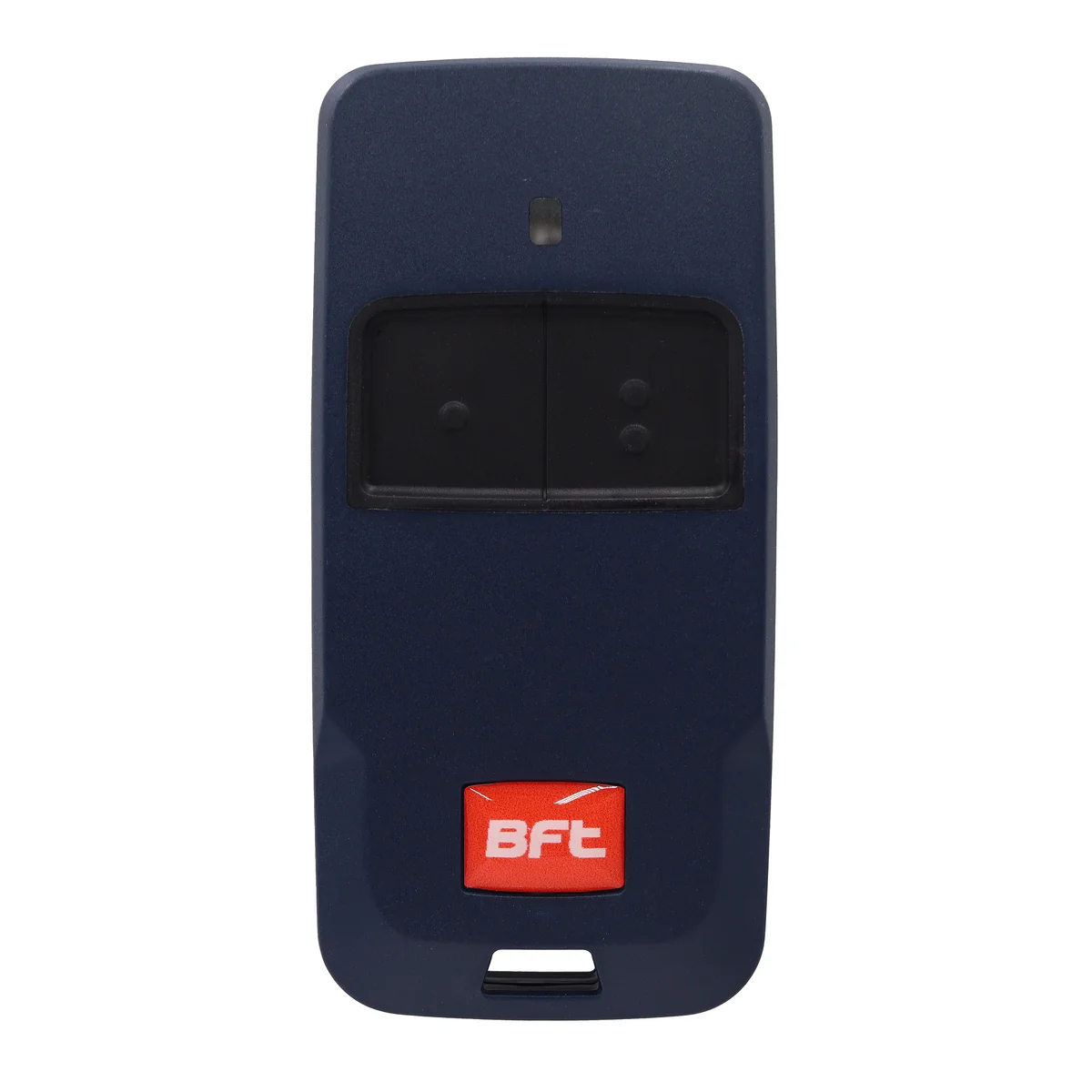

The BFT MITTO COOL C2 is a genuine BFT 2-button remote control transmitter designed for compatible BFT automatic gates, garage doors and access-control systems.
Operating on the 433.92 MHz BFT rolling-code platform, the MITTO COOL C2 provides two programmable channels in a compact keyring-style transmitter and is the current replacement option for a range of earlier BFT MITTO remotes.
BFT Product Code: D112306
🎮 Genuine BFT Remote Control
The MITTO COOL C2 is a genuine BFT transmitter manufactured for use with compatible BFT automation and receiver systems.
Using a genuine BFT remote ensures the transmitter uses the correct BFT radio protocol and programming method for supported receivers.
This makes it suitable as:
- A replacement for a lost remote
- A replacement for a damaged remote
- An additional remote for another user
- A spare remote
- A replacement for selected earlier BFT MITTO transmitters
🔘 2-Button / 2-Channel Operation
The MITTO COOL C2 features two independently programmable buttons.
Each button represents a separate radio channel and can be assigned according to the configuration of the compatible BFT receiver.
Typical applications can include:
- Main automatic gate
- Second automatic gate
- Garage door
- Pedestrian opening command
- Auxiliary receiver function
The actual function of each button depends on how the receiver and automation control board have been configured.
📡 433.92 MHz Radio Frequency
The MITTO COOL C2 operates at:
- 433.92 MHz
This is the radio frequency used by compatible BFT MITTO rolling-code receiver systems.
Compatibility should be determined by the receiver and radio system rather than simply matching the physical appearance of the remote.
🔐 Rolling-Code Security
The MITTO COOL C2 uses BFT rolling-code technology.
Rather than transmitting the same fixed code every time a button is pressed, the rolling-code system changes the transmitted security code according to the BFT radio protocol.
This provides significantly greater security than traditional fixed-code remote-control systems.
🔄 Replacement for Earlier BFT MITTO Remotes
The MITTO COOL C2 is compatible with a range of earlier BFT MITTO transmitters using the appropriate BFT rolling-code system.
Compatible or superseded transmitter families include selected:
- BFT MITTO2
- BFT MITTO4
- BFT MITTO2A
- BFT MITTO4A
- BFT MITTO B RCB02
- BFT MITTO B RCB04
- BFT KLEIO B RCA04
- BFT TRC1
- BFT TRC2
- BFT TRC4
The existing receiver should always be checked before ordering where compatibility is uncertain.
🚧 Automatic Gate Applications
The MITTO COOL C2 is widely used with BFT automatic gate automation.
Compatible applications can include selected:
- Sliding gate operators
- Swing gate operators
- Automatic barriers
- BFT external receivers
- Integrated BFT control-board receivers
This makes the MITTO COOL C2 suitable for residential, commercial and shared-access gate installations using the appropriate BFT radio system.
🚪 Garage Door Applications
The MITTO COOL C2 can also operate compatible BFT garage door automation.
Where a compatible BFT receiver is installed, the same remote can potentially be programmed to operate both an automatic gate and garage door using its two separate buttons.
This provides convenient control of multiple compatible BFT automation systems from a single transmitter.
📏 50–100m Nominal Range
BFT specifies a nominal operating range of approximately:
- 50–100 metres
Actual transmitter range can vary significantly depending on the installation.
Factors affecting radio range include:
- Receiver location
- Receiver antenna
- Buildings
- Metal structures
- Electrical interference
- Vehicle construction
- Surrounding terrain
- Battery condition
An appropriately installed external receiver antenna can improve radio reception where required.
🔋 CR2032 Battery
The MITTO COOL C2 is powered by:
- 1 × CR2032
- 3V lithium coin-cell battery
The battery is replaceable when required.
The compact CR2032 battery allows the transmitter to maintain a small and lightweight enclosure suitable for everyday keyring use.
🔴 LED Transmission Indicator
The transmitter incorporates an LED indicator that illuminates during remote operation.
This provides a convenient visual indication that the transmitter button has been pressed.
If transmitter performance becomes intermittent or operating range noticeably decreases, the battery should be checked and replaced where required.
🔑 Compact Keyring Design
The MITTO COOL C2 has a compact enclosure designed for everyday use.
Its small size makes it suitable for:
- Vehicle keys
- House keys
- Personal keyrings
- Carrying in a pocket
- Keeping as a spare transmitter
The integrated keyring attachment provides a convenient way to keep the remote with the user’s keys.
📐 Compact Dimensions
The MITTO COOL C2 measures approximately:
- 66 mm long
- 32 mm wide
- 12–13 mm deep
Its compact dimensions make it significantly smaller than many traditional gate remote controls.
⚖️ Lightweight Construction
The MITTO COOL C2 weighs approximately:
- 17–20 g
This makes it suitable for carrying on a keyring without adding significant bulk or weight.
🧠 Programming Required
A new MITTO COOL C2 must be programmed to the compatible BFT receiver before it can operate the gate or garage door.
Depending on the receiver and installation, programming may be performed:
- Directly through the BFT control board
- Through a compatible external BFT receiver
- Using an authorised existing transmitter where supported
The programming procedure depends on the BFT control board and receiver installed at the property.
📡 Compatible BFT Receivers
The MITTO COOL C2 can be used with compatible BFT rolling-code receiver systems.
These include selected:
- BFT CLONIX receivers
- BFT integrated control-board receivers
- Compatible BFT gate control boards
- Compatible BFT garage door control systems
Always check the receiver type where the existing automation system is unknown.
🏠 Residential Applications
The MITTO COOL C2 is ideal for residential BFT automation including:
- Driveway sliding gates
- Swing gates
- Garage doors
- Pedestrian gate automation
- Multiple compatible entrances
With two programmable channels, a single remote can potentially control two compatible functions.
🏢 Commercial Applications
The transmitter can also be used with compatible BFT commercial access installations.
Typical applications can include:
- Commercial gates
- Staff entrances
- Apartment gates
- Shared driveways
- Car parks
- Automatic barriers
- Industrial access gates
Receiver capacity and user-management requirements should be considered for larger shared-access installations.
📦 What’s Included
The BFT MITTO COOL C2 includes:
- 1 × Genuine BFT MITTO COOL C2 Remote Control
- 1 × CR2032 3V Lithium Battery
The remote requires programming to the compatible BFT receiver before use.
⭐ Key Features
- Genuine BFT remote control
- Model MITTO COOL C2
- BFT product code D112306
- 2-button transmitter
- 2 independent channels
- 433.92 MHz operating frequency
- BFT rolling-code technology
- Compatible with selected earlier BFT MITTO systems
- Replacement for selected MITTO B transmitters
- Suitable for compatible automatic gates
- Suitable for compatible garage doors
- Suitable for compatible BFT receivers
- Nominal 50–100m operating range
- Compact keyring design
- LED transmission indicator
- CR2032 battery powered
- Battery included
- Replaceable battery
- Approximately 66 × 32 × 12–13 mm
- Approximately 17–20 g
- Suitable as a replacement or additional remote
🔧 Specifications
- Manufacturer: BFT
- Model: MITTO COOL C2
- BFT Product Code: D112306
- Product Type: Remote Control Transmitter
- Number of Buttons: 2
- Number of Channels: 2
- Operating Frequency: 433.92 MHz
- Coding System: Rolling Code
- Nominal Operating Range: 50–100 m
- Power Supply: 3V
- Battery: 1 × CR2032 Lithium Coin Cell
- Battery Included: Yes
- Approximate Dimensions: 66 × 32 × 12–13 mm
- Approximate Weight: 17–20 g
- Keyring Attachment: Yes
- LED Indicator: Yes
- Programming Required: Yes
🔗 Compatibility
The BFT MITTO COOL C2 is designed for compatible BFT automation and receiver systems using the appropriate MITTO rolling-code radio platform.
It can replace or operate alongside selected:
- BFT MITTO2
- BFT MITTO4
- BFT MITTO2A
- BFT MITTO4A
- BFT MITTO B RCB02
- BFT MITTO B RCB04
- BFT KLEIO B RCA04
- BFT TRC1
- BFT TRC2
- BFT TRC4
Compatible applications include selected BFT:
- Sliding gate operators
- Swing gate operators
- Garage door operators
- Automatic barriers
- CLONIX receivers
- Integrated control-board receivers
Compatibility should be confirmed against the receiver or control board where the existing radio system is unknown.
⚠️ Please Note
This product is a genuine BFT MITTO COOL C2 remote control.
BFT Product Code: D112306
The remote uses a 433.92 MHz BFT rolling-code radio system.
A new transmitter must be programmed to the compatible BFT receiver before it can operate the gate or garage door.
Matching the appearance or frequency of another remote alone does not guarantee compatibility. The receiver and coding system must also be compatible.
One CR2032 3V lithium coin-cell battery is included.
Button and coin-cell batteries can cause serious injury if swallowed. Keep new and used batteries out of reach of children and dispose of used batteries immediately and safely.
If you are unsure whether the MITTO COOL C2 is compatible with your existing BFT automation system, contact our Technical Support team on 1300 733 066 for assistance.
