Description

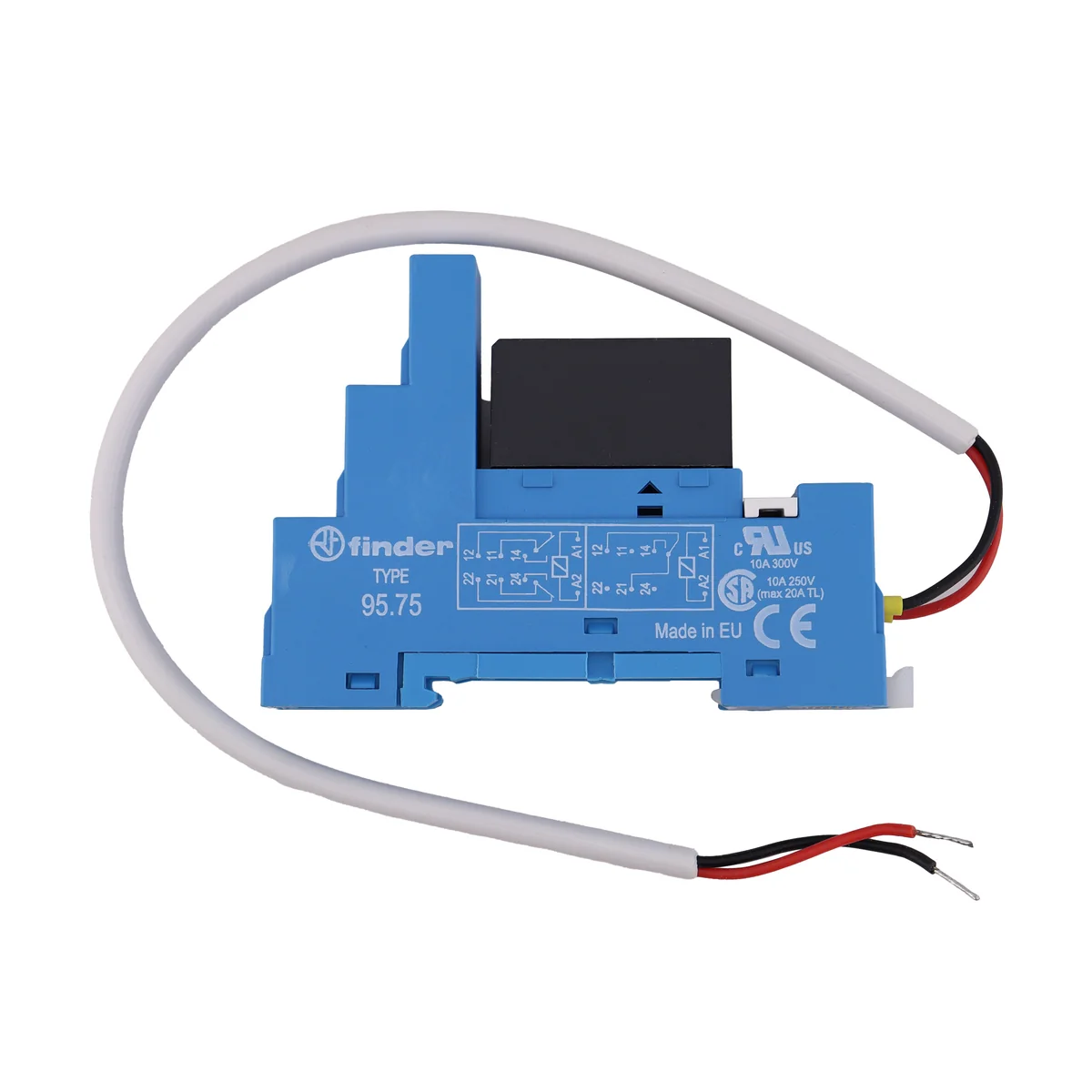

The ATA Light Relay Module is an optional accessory designed to provide light control functionality for compatible ATA garage door openers, LCD menu-driven control systems and stand-alone receivers.
The module allows a compatible ATA control system to switch an external light through its light output function, making it ideal where additional garage, driveway or surrounding area lighting is required.
ATA Part Number: 62188
Alternative ATA Reference: 90111
💡 Optional Light Control Module
The ATA Light Relay Module provides a convenient interface for controlling external lighting from a compatible ATA automation system.
When installed with supported equipment, the module allows the controller’s light function to operate an external lighting circuit through the relay.
This can be useful for automatically illuminating an area when the garage door or automation system is operated.
🚪 Garage Door Lighting Applications
The Light Relay Module is particularly useful where the built-in courtesy lighting of the garage door opener is not sufficient for the installation.
An external light can provide additional illumination around areas such as:
- Garage interiors
- Garage entrances
- Driveways
- Workshops
- Carports
- Storage areas
- Access pathways
The exact operation and timing of the light output depends on the compatible ATA controller and its programming.
⚙️ Designed for Compatible ATA Systems
The 62188 Light Relay Module is designed for selected ATA systems that provide support for an optional light relay.
It is suitable for:
- ATA Gen2 openers
- Compatible ATA LCD menu-driven systems
- Compatible ATA stand-alone receivers
Compatibility should always be checked against the specific ATA controller before installation.
🌀 GDO-6v4 EasyRoller Gen2
The Light Relay Module is compatible with the ATA GDO-6v4 EasyRoller Gen2.
This allows additional external lighting to be incorporated into a compatible EasyRoller installation.
It can be particularly useful where the roller door opener is installed in a larger garage or where additional lighting around the door opening is required.
🚪 GDO-9v3 Dynamo Gen2
The 62188 Light Relay Module is also compatible with the ATA GDO-9v3 Dynamo Gen2 sectional garage door opener.
When correctly installed and configured, the module provides the interface required for the opener’s supported light control function to operate compatible external lighting.
🚪 GDO-9v2 Enduro Gen2
The ATA GDO-9v2 Enduro Gen2 is another specifically listed compatible opener.
The Light Relay Module can be incorporated into the compatible control system where an external switched lighting output is required.
🖥️ LCD Menu-Driven Systems
The module is suitable for compatible ATA LCD menu-driven control systems.
These systems provide programmable functions through the controller’s LCD interface.
Where the controller supports an external courtesy light output, the Light Relay Module provides the relay interface required to operate the connected lighting circuit.
The exact configuration procedure depends on the ATA controller being used.
📡 Stand-Alone Receiver Applications
The ATA Light Relay Module can also be used with compatible ATA stand-alone receiver systems.
This provides additional flexibility where a lighting function needs to be controlled independently of a garage door opener.
The exact functionality depends on the receiver model and system configuration.
🏠 Automatic Courtesy Lighting
One of the most useful applications for the Light Relay Module is automatic courtesy lighting.
A compatible system can be configured so that external lighting operates in conjunction with the automation system.
This can provide additional visibility when:
- Entering the garage at night
- Leaving the property
- Operating the garage door
- Accessing a workshop
- Walking between the garage and house
- Parking a vehicle after dark
The available light timing and operating modes depend on the connected ATA control system.
🔌 Relay Interface
The Light Relay Module provides the switching interface between the compatible ATA controller and the external lighting system.
The module allows the low-voltage control electronics to command a separate lighting circuit without the lighting load being switched directly by the controller’s electronic output.
The connected lighting circuit must remain within the electrical ratings specified for the module and installation.
🛠️ Useful Upgrade Accessory
The ATA Light Relay Module can be a useful upgrade for an existing compatible garage door automation system.
It allows additional lighting functionality to be incorporated without replacing the complete garage door opener.
This makes it suitable for:
- New installations
- Existing compatible opener upgrades
- Garage renovations
- Workshop lighting
- Additional courtesy lighting
- Compatible stand-alone receiver systems
🏡 Residential Applications
The module is well suited to residential garage door installations where improved lighting is required.
Potential applications include:
- Single garages
- Double garages
- Residential workshops
- Carports
- Driveway lighting
- Garage entrance lighting
🏢 Commercial Applications
Where used with compatible ATA equipment, the module may also be useful for light commercial installations.
Applications can include:
- Workshops
- Storage facilities
- Small warehouses
- Commercial garages
- Service areas
The electrical load and switching requirements must be appropriate for the module and installation.
🔧 Genuine ATA Accessory
The 62188 is an ATA accessory designed specifically for use with compatible ATA automation equipment.
Using the correct light relay module helps ensure compatibility with the intended control system and its programmable light functions.
⭐ Key Features
- Genuine ATA Light Relay Module
- ATA part number 62188
- Alternative reference 90111
- Optional external lighting interface
- Designed for compatible ATA automation systems
- Suitable for ATA Gen2 openers
- Suitable for compatible LCD menu-driven systems
- Suitable for compatible stand-alone receivers
- Compatible with GDO-6v4 EasyRoller Gen2
- Compatible with GDO-9v3 Dynamo Gen2
- Compatible with GDO-9v2 Enduro Gen2
- Allows compatible controllers to operate external lighting
- Ideal for additional garage lighting
- Ideal for driveway and entrance lighting
- Suitable for new installations
- Suitable for compatible system upgrades
- Genuine ATA accessory
🔧 Specifications
- Manufacturer: Automatic Technology Australia
- Brand: ATA
- Product: Light Relay Module
- ATA Part Number: 62188
- Alternative Reference: 90111
- Product Type: Light Relay Module
- Application: External Light Control
- Compatible with Gen2 Systems: Yes
- Compatible with Selected LCD Menu-Driven Systems: Yes
- Compatible with Selected Stand-Alone Receivers: Yes
- Warranty: 12 Months
🔗 Compatibility
The ATA Light Relay Module is designed for compatible ATA Gen2 openers, LCD menu-driven systems and stand-alone receivers.
Specifically listed compatible products include:
- ATA GDO-6v4 EasyRoller Gen2
- ATA GDO-9v3 Dynamo Gen2
- ATA GDO-9v2 Enduro Gen2
- Compatible ATA Gen2 Motors
- Compatible ATA LCD Menu-Driven Systems
- Compatible ATA Stand-Alone Receivers
Always confirm compatibility with the exact opener, control board or receiver before ordering.
⚠️ Please Note
This listing is for the ATA Light Relay Module only.
External lights, garage door openers, receivers and other accessories are not included unless specifically stated.
The Light Relay Module must be used with a compatible ATA opener, control system or stand-alone receiver that supports the required light output functionality.
Electrical specifications and the permitted lighting load should be confirmed before connecting an external lighting circuit.
Any connection involving mains-voltage electrical wiring must be carried out in accordance with applicable Australian electrical requirements by an appropriately licensed person.
Always follow the installation and programming instructions for the connected ATA control system.
