ATA CB-6 Logic Controller – BND60605
The ATA CB-6 Logic Controller is a versatile industrial control system designed for the automation of larger gates, doors and shutters using single-phase or three-phase AC motors.
Built around microprocessor-controlled logic, the CB-6 provides extensive control and safety inputs for professional automation installations, including photoelectric safety beams, loop detectors, swipe-card systems, pedestrian access controls and optional remote-control receivers.
The CB-6 can control one or two motors, making it suitable for both single and dual-motor automation systems.
B&D / ATA Part Number: BND60605.
⚙️ Industrial Automation Controller
The CB-6 is designed for applications requiring more flexibility than a conventional integrated garage door opener control board.
It can form the central control system for compatible:
- Industrial gates
- Commercial gates
- Swing gates
- Sliding gates
- Industrial doors
- Commercial doors
- Motorised shutters
- Single-motor systems
- Dual-motor systems
- Other compatible AC motor automation systems
The exact configuration depends on the motors, contactors, limit switches and accessories used within the installation.
🔄 Control Up to Two Motors
The CB-6 can control up to two AC motors.
This allows it to be configured for:
- Single-motor automation
- Dual-motor automation
- Single-leaf gates
- Dual-leaf gates
- Compatible commercial door systems
- Other one or two motor installations
When only one motor is required, the second motor control functions do not need to be used.
⚡ Single or Three-Phase Motor Control
One of the major advantages of the CB-6 is its ability to form part of both single-phase and three-phase automation systems.
ATA specifies support for:
- Single-phase AC motors
- Three-phase AC motors via suitable contactors
This makes the controller particularly useful for commercial and industrial automation where larger three-phase motors may be required.
Correct contactors and electrical equipment must be selected according to the motor and installation.
🧠 Microprocessor Logic
The CB-6 uses microprocessor-controlled logic to manage the automation system.
Rather than simply switching a motor on and off, the controller can coordinate:
- Opening cycles
- Closing cycles
- Stop commands
- Pedestrian operation
- Safety inputs
- Automatic closing
- Motor sequencing
- Limit switch inputs
- Access-control triggers
- Optional lighting functions
This provides considerable flexibility when configuring a customised automation system.
🚪 Dual Gate Synchronisation
For dual-motor installations, the CB-6 incorporates synchronising-delay functionality.
This allows the operation of two motors to be coordinated where one gate leaf needs to start or stop at a different time to the other.
This is particularly useful on overlapping dual swing gates where one leaf must move before the second leaf.
🚶 Pedestrian Access
A dedicated pedestrian input allows the CB-6 to provide partial-access functionality.
This can be used to operate the appropriate gate or door for pedestrian entry without requiring the complete entrance to open.
Pedestrian cycle timing and automatic closing functions can also be configured within the controller.
🔁 Automatic Closing
The CB-6 provides multiple automatic-close functions.
ATA documentation identifies dedicated modes for:
- Standard Auto Close
- Pedestrian Auto Close
- Photoelectric Beam Triggered Auto Close
This provides considerable flexibility when configuring how the gate or door should automatically close after being opened.
👁️ Photoelectric Safety Beam Input
The CB-6 provides a dedicated P.E. input for connection of compatible photoelectric safety equipment.
The controller can be configured to alter its behaviour when the safety beam is activated.
Depending on the selected operating mode, the photoelectric input can interact with opening, closing and automatic-close functions.
Appropriate safety devices should be installed according to the automation system and site requirements.
🚗 Loop Detector Compatibility
The flexible control inputs allow the CB-6 to be integrated with suitable vehicle loop detectors.
Loop detection can be used in commercial and industrial access-control applications to detect vehicles and provide an appropriate trigger to the automation system.
This makes the CB-6 suitable for installations such as:
- Commercial driveways
- Car parks
- Industrial entrances
- Warehouses
- Loading areas
- Controlled vehicle access points
💳 Access Control Integration
The CB-6 can accept triggers from external access-control equipment.
Compatible installations can incorporate equipment such as:
- Swipe-card readers
- Key switches
- Push buttons
- Access-control systems
- Loop detectors
- Safety beams
- Intercom systems
- Suitable external relay outputs
This allows the CB-6 to operate as the automation controller while a separate access-control system determines who is authorised to activate the gate or door.
🎛️ Multiple Control Inputs
ATA provides dedicated control and safety inputs including:
- OPN – Open
- CLS – Close
- STP – Stop
- OSC – Open / Stop / Close
- PED – Pedestrian
- P.E. – Photoelectric Safety
This gives installers considerable flexibility when integrating external switches, access-control equipment and safety devices.
📡 Optional Remote Control Receiver
The CB-6 incorporates a connection for a compatible ATA plug-in receiver.
Adding the appropriate receiver allows the automation system to be operated using compatible wireless remote transmitters.
This means the CB-6 can be configured for:
- Hardwired controls only
- Access-control operation
- Remote-control operation
- A combination of different control methods
The receiver and remote transmitters are optional and are not included unless specifically stated.
🚦 Gate Status Indication
In suitable configurations, the motor 2 outputs can be repurposed to provide gate-status indication when they are not required to operate a second motor.
This can allow external indicator lights to show gate status.
This feature provides additional flexibility for commercial or industrial installations where operators need a visual indication of the automation system’s condition.
💡 Optional Warning & Courtesy Lighting
The CB-6 supports an optional light relay module.
When fitted, this can be used to control suitable:
- Warning lights
- Courtesy lights
- Status lighting
The relay can switch an external lighting circuit according to the controller configuration.
The optional relay module and external lighting equipment are separate components.
🔐 Electric Lock Output
The CB-6 provides functionality for compatible electric locking equipment.
This can be useful on automated gate installations where an electric lock is required to secure the gate when closed.
The lock function can be coordinated with the automation cycle so the lock is released before the gate begins opening.
⏱️ Adjustable Cycle Timers
The controller provides adjustable timing for various operating functions.
These include:
- Open cycle timing
- Close cycle timing
- Pedestrian cycle timing
- Standard auto-close timing
- Pedestrian auto-close timing
- Photoelectric-triggered auto-close operation
This allows the controller to be configured according to the travel requirements of the connected automation system.
🛑 Limit Switch Support
The CB-6 supports limit switch inputs for compatible motors.
Limit switches can provide the controller with information when the automated gate or door reaches its required open or closed position.
The controller can also be configured for compatible applications where conventional limit switches are not used.
🔍 Input Status LEDs
The control board incorporates LED indicators for supported inputs.
These indicators allow technicians to quickly check the status of:
- Control inputs
- Safety inputs
- Limit switch inputs
This can significantly assist during installation, commissioning and troubleshooting.
🧰 Professional Installation & Diagnostics
The CB-6 provides extensive adjustment and diagnostic functionality intended for professional automation installers.
The controller allows technicians to configure the operating behaviour according to the particular motor and access system.
Its input status indicators can also help identify problems with:
- Safety circuits
- Limit switches
- External controls
- Access-control equipment
- Motor operation
🔧 PG3 Programmer Support
Later CB-6 versions support interaction with the ATA PG3 Programmer.
The PG3 can provide technicians with additional service functions including supported settings, monitoring and memory tools.
This makes the CB-6 particularly suitable for professional service and maintenance environments where advanced diagnostic access is useful.

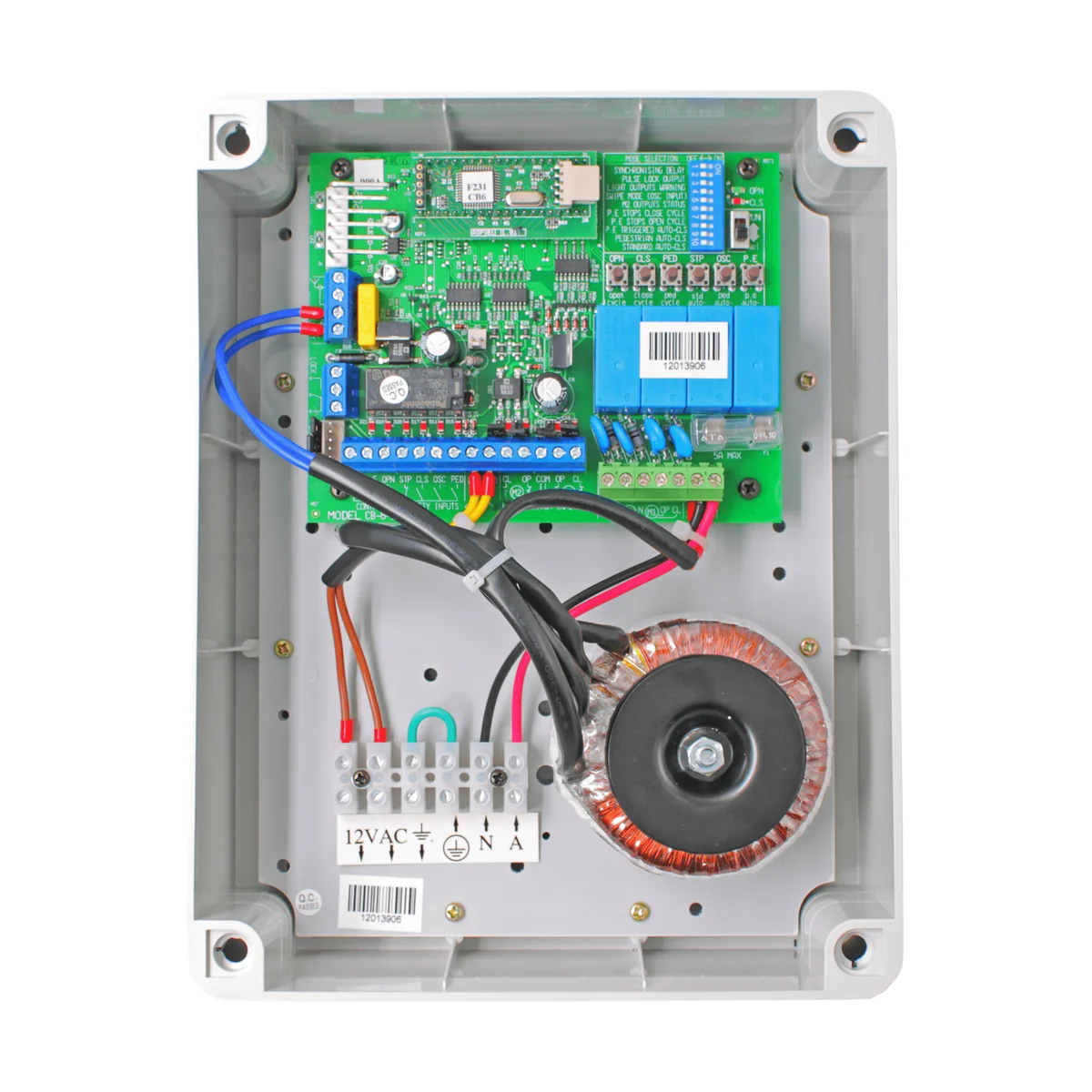

🌦️ Complete Control Box Assembly
BND60605 refers to the complete CB-6 control box assembly rather than the bare replacement logic circuit board.
The CB-6 control system is housed within a protective enclosure suitable for correctly installed automation applications.
The bare CB-6 logic board is a separate replacement component.
📦 BND60605 Control Box
The BND60605 CB-6 assembly includes the CB-6 control system within its control enclosure.
ATA documentation identifies:
- CB-6 Control Box Assembly
- CB-6 Logic Control Board
- Mounting hardware for the enclosure
The enclosure assembly also incorporates the power supply equipment required by the controller.
This should not be confused with the standalone CB-6 replacement logic board.
🏭 Ideal for Commercial & Industrial Automation
The flexibility of the CB-6 makes it particularly well suited to more complex automation installations.
Typical applications include:
- Industrial gates
- Commercial gates
- Factory entrances
- Warehouse doors
- Motorised shutters
- Commercial access gates
- Vehicle entrances
- Dual swing gates
- Automated industrial doors
- Custom automation systems
Key Features
- Genuine ATA / B&D control system
- Model: CB-6
- Part Number: BND60605
- Complete control box assembly
- Microprocessor-controlled logic
- Controls up to two AC motors
- Supports single-phase motors
- Supports three-phase motors via suitable contactors
- Single or dual motor operation
- Open input
- Close input
- Stop input
- Open / Stop / Close input
- Pedestrian access input
- Photoelectric safety input
- Limit switch support
- Standard automatic closing
- Pedestrian automatic closing
- Photoelectric-triggered automatic closing
- Dual motor synchronisation delay
- Electric lock functionality
- Optional warning/courtesy light control
- Optional plug-in remote receiver
- Loop detector integration
- Swipe-card/access-control integration
- Input status LEDs
- PG3 programming/service support on compatible versions
- Suitable for commercial and industrial automation
Specifications
- Manufacturer: Automatic Technology Australia
- Brand: ATA / B&D
- Model: CB-6
- Part Number: BND60605
- Product Type: Logic Controller / Control Box
- Control Technology: Microprocessor Logic
- Maximum Motors Controlled: 2
- Motor Type: AC
- Single-Phase Motor Support: Yes
- Three-Phase Motor Support: Yes – via suitable contactors
- Limit Switch Inputs: Yes
- Photoelectric Safety Input: Yes
- Open Input: Yes
- Close Input: Yes
- Stop Input: Yes
- OSC Input: Yes
- Pedestrian Input: Yes
- Automatic Close: Yes
- Pedestrian Auto Close: Yes
- P.E. Triggered Auto Close: Yes
- Dual Motor Synchronisation: Yes
- Optional Remote Receiver: Yes
- External Access Control Integration: Yes
- Loop Detector Integration: Yes
- Electric Lock Function: Yes
- Optional Lighting Control: Yes
- PG3 Support: Compatible Versions
- Application: Gate, Door, Shutter & Industrial Automation
Compatibility
The ATA CB-6 is designed for compatible industrial gate, door and shutter automation systems using suitable AC motors.
It can be configured for:
- One single-phase AC motor
- Two single-phase AC motors
- Compatible three-phase motors using suitable contactors
- Single gate or door systems
- Dual gate or door systems
- Compatible industrial shutters
- Compatible commercial automation systems
External access-control and safety equipment can also be connected through the appropriate control inputs.
⚠️ Please Note
BND60605 refers to the CB-6 control box assembly.
The standalone CB-6 replacement logic board is a separate component and should not be confused with the complete BND60605 control box.
The CB-6 is a professional automation controller intended for correctly designed gate, door and shutter systems.
Three-phase motors require suitable external contactors.
A compatible plug-in radio receiver is required if wireless remote-control operation is desired. The receiver and remote transmitters are not included unless specifically stated.
Safety beams, loop detectors, access-control equipment, contactors, electric locks and other external accessories are separate unless specifically included.
Mains-voltage electrical connections must only be performed by an appropriately qualified electrical contractor.
Automatic gates and doors can cause serious injury if incorrectly installed or configured. Appropriate safety devices must be selected according to the installation and applicable requirements.
If you are unsure whether the CB-6 is suitable for your existing gate, door, shutter or motor system, contact our Technical Support team on 1300 733 066 before ordering.
