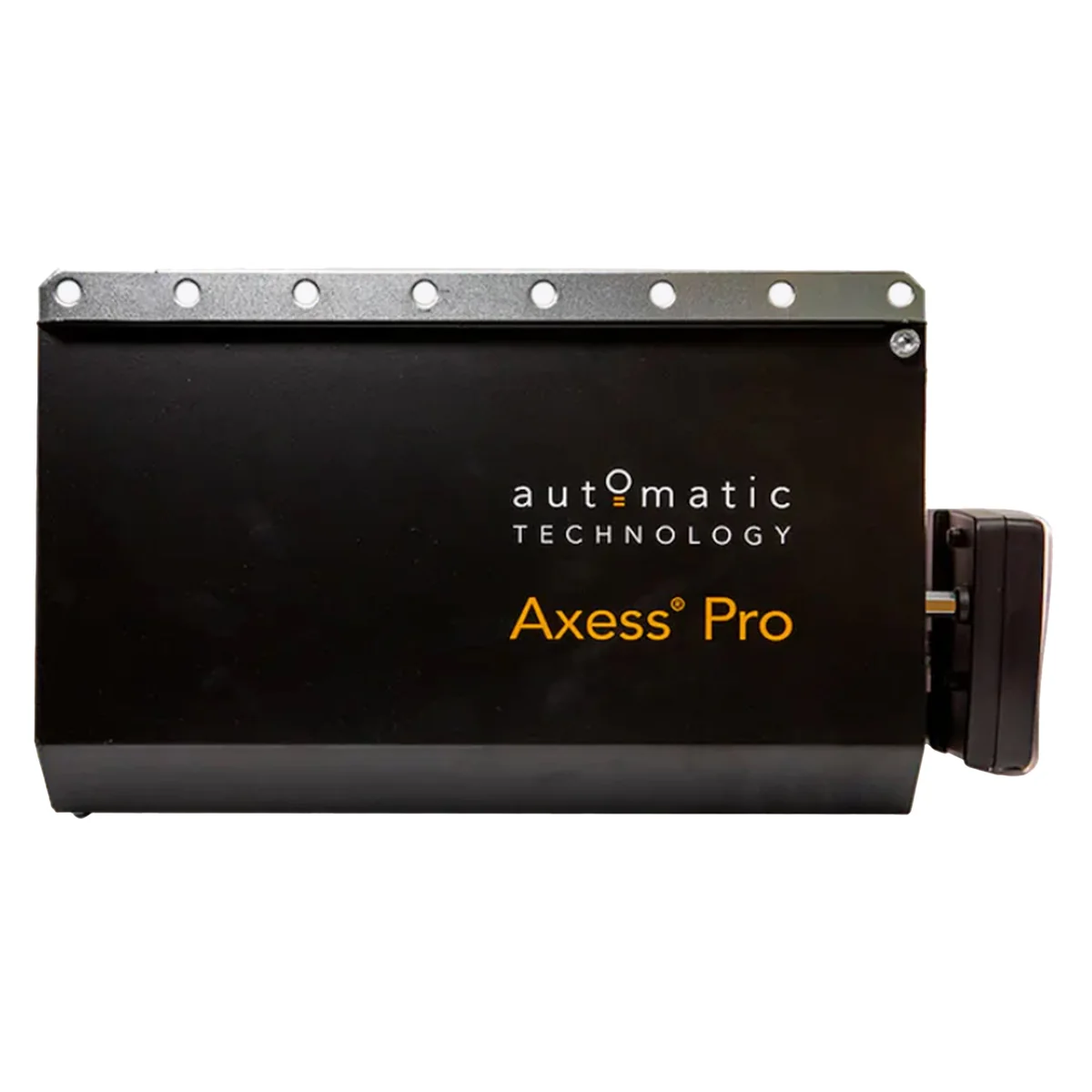

ATA AP1505 Axess Pro 1500 Commercial Door Operator Bundle
The ATA AP1505 Axess Pro 1500 Commercial Door Operator Bundle is a heavy-duty automation package designed for high-use commercial and industrial sectional overhead doors.
Built around the powerful ATA Axess Pro 1505 commercial operator, this bundle allows you to select the appropriate rail length for your installation, with a choice of either a 4m rail or 5.5m rail.
The Axess Pro 1505 combines a heavy-duty three-phase induction motor with integrated inverter technology, intelligent electronic controls and ATA’s commercial door automation features, providing a powerful and reliable solution for sectional doors up to 25m².
📦 Build Your Axess Pro 1500 Package
This bundle allows you to configure the Axess Pro system according to the height and travel requirements of your sectional door.
Select your required rail length from the options above:
- 4m Rail Kit – MC0067
- 5.5m Rail Kit – 92508
The selected rail is supplied together with the compatible ATA AP1505 Axess Pro 1500 Commercial Door Operator to create the core drive system required for the installation.
The correct rail should be selected according to the door height, required travel and sectional door track configuration.
🏭 Heavy-Duty Commercial Door Automation
The Axess Pro 1505 is purpose-built for commercial and industrial sectional overhead doors that require greater capacity and operating frequency than a conventional residential garage door opener.
Typical applications include:
- Commercial sectional garage doors
- Warehouse doors
- Factory entrances
- Workshop doors
- Automotive workshops
- Commercial vehicle garages
- Storage facilities
- Industrial buildings
- High-clearance sectional doors
- Large custom sectional doors
- High-use overhead doors
The system is designed to provide smooth, controlled and dependable operation in demanding commercial environments.
💪 Designed for Sectional Doors up to 25m²
The Axess Pro 1505 is designed for compatible spring-balanced commercial and industrial sectional doors up to 25m².
Its heavy-duty commercial construction makes it suitable for larger doors where a residential-style opener would not be appropriate.
Final operator suitability should take into consideration:
- Door width
- Door height
- Finished door weight
- Spring balance
- Track configuration
- Door construction
- Required operating frequency
- Available headroom
- Required door travel
⚙️ Heavy-Duty Three-Phase Motor
At the heart of the Axess Pro 1505 is a 373W three-phase induction motor.
Rather than requiring a three-phase electrical supply at the door, the operator incorporates inverter technology that allows the three-phase motor to operate from a standard 230–240V single-phase mains supply.
This provides the performance and speed control advantages of a three-phase motor while simplifying electrical requirements at many commercial installations.
⚡ Integrated Inverter Technology
The integrated inverter provides electronic control over the three-phase motor, allowing the Axess Pro to control acceleration, operating speed and deceleration.
This contributes to:
- Smooth acceleration
- Controlled operating speed
- Soft starting
- Soft stopping
- Reduced mechanical shock
- Controlled door movement
- Reduced stress on door hardware
- Improved commercial operating characteristics
🔄 60% Duty Cycle
The Axess Pro 1505 features a 60% rated duty cycle, making it suitable for high-use commercial sectional doors.
This provides significantly greater operating capacity than a typical residential garage door opener and makes the AP1505 particularly suitable for businesses where the door may operate repeatedly throughout the working day.
For exceptionally intensive applications, the expected operating frequency should still be considered when selecting the complete door automation system.
🧠 Intelligent Door Profiling
Every commercial sectional door behaves slightly differently depending on its size, weight, spring balance and mechanical construction.
The Axess Pro profiles the door during commissioning to determine the power required throughout the opening and closing cycle.
The system can then monitor and adjust its operating characteristics to provide controlled movement and obstruction detection throughout the life of the installation.
🧲 M-ALPS Magnetic Limit System
The Axess Pro uses ATA’s Magnetic Automatic Limit Position System – M-ALPS.
This system allows the opening and closing positions to be established during commissioning and provides accurate electronic positioning throughout operation.
Reliable limits are particularly important on large commercial sectional doors where excessive travel at either end of the cycle can place unnecessary load on the door and operator.
📡 TrioCode128 Remote Technology
The Axess Pro 1505 incorporates ATA’s secure TrioCode128 remote-control technology.
The commercial receiver provides capacity for up to 511 four-button transmitter registers, making the system suitable for commercial premises with multiple authorised users.
Compatible ATA transmitters can also be used to control multiple doors, gates and other compatible access devices from a single remote.
👁️ Safety Beam Compatible
The Axess Pro 1505 supports compatible ATA safety beam systems, including wired and wireless configurations.
Safety beams provide non-contact obstruction detection across the door opening.
They are particularly important in commercial environments involving:
- Vehicles
- Forklifts
- Pedestrian traffic
- Remote operation
- Automatic closing
- Access-control systems
The Axess Pro platform provides multiple safety beam inputs, allowing the safety system to be configured according to the individual installation.
⏱️ Automatic Closing Capability
The Axess Pro can be configured for automatic closing when the appropriate safety equipment is installed.
This allows the sectional door to automatically close after a programmed period, helping prevent commercial doors from accidentally being left open.
Safety beams are required when using automatic closing functions.
🕐 24/7 Programmable Time Clock
When configured with the appropriate ATA Logic Control system, the Axess Pro provides access to a programmable 24/7 time clock.
Different operating behaviours can be configured according to:
- Time of day
- Day of the week
- Business operating hours
- After-hours periods
- Weekend schedules
This can provide greater control over how the commercial door operates during and outside normal business hours.
🔔 Service Reminder System
Regular servicing is particularly important for high-use commercial sectional doors.
The Axess Pro incorporates audio and visual service reminders designed to alert users when scheduled maintenance is required.
Maintaining both the operator and the sectional door hardware helps ensure safe, smooth and reliable long-term operation.
🎛️ Flexible Commercial Controller Options
The Axess Pro 1505 can be configured with a range of ATA commercial control options depending on the requirements of the installation.
Available control arrangements can include:
- Logic Control Unit
- Logic Console
- Manual Console
- Lockable Control Box
These options allow the Axess Pro system to be configured from straightforward commercial door control through to more advanced programmable automation.
🔐 Lockable Control Box Option
For commercial environments where access to the door controls needs to be restricted, an optional lockable control box can be incorporated into the system.
Depending on configuration, this can provide dedicated:
- OPEN
- CLOSE
- EMERGENCY STOP
controls together with keyed operating modes for authorised personnel.
📏 Choose Your Rail Length
This composite bundle provides a choice between two Axess Pro 1500 rail configurations.
4m Rail Kit – MC0067
Select the 4m rail for compatible standard-height commercial sectional door installations where the shorter rail provides sufficient door travel.
The 4m commercial rail provides the guided drive path for the operator trolley and is designed specifically for the Axess Pro 1500 platform.
5.5m Rail Kit – 92508
Select the 5.5m rail for taller commercial sectional doors requiring additional operator travel.
The extended rail is particularly useful for high-clearance commercial and industrial openings where a 4m rail does not provide sufficient travel.
The exact rail required should always be determined from the door height and track configuration rather than simply selecting the longest available rail.
🏗️ Suitable for High-Clearance Applications
When configured with the appropriate rail, the Axess Pro 1505 is particularly suitable for taller commercial sectional doors used for access by:
- Trucks
- Commercial vehicles
- High-roof vans
- Machinery
- Agricultural equipment
- Emergency vehicles
- Industrial equipment
The achievable door height depends on the selected rail and the geometry of the complete sectional door system.
📐 Low Headroom Capability
Despite its commercial capacity, the Axess Pro 1500 platform has been designed with compact installation in mind.
The operator can accommodate installations with as little as approximately 120mm between the ceiling and the highest point of door travel, subject to the complete door and mounting configuration.
This makes the Axess Pro useful for commercial installations where ceiling clearance is restricted.
⚖️ Designed for Spring-Balanced Sectional Doors
The Axess Pro 1505 and its rail system are designed for correctly spring-balanced sectional overhead doors.
Before connecting the operator, the door should:
- Move smoothly throughout its complete travel
- Be correctly spring balanced
- Have correctly aligned tracks
- Have free-running rollers
- Have correctly adjusted hinges
- Remain under control throughout its travel
- Have structurally sound mounting points
- Remain within the operator’s rated application
The automatic operator should never be used to compensate for broken springs, excessive friction or a poorly balanced sectional door.
🔩 Commercial-Grade Rail System
Both rail options are designed to provide a stable guided path for the Axess Pro drive trolley.
Correct rail alignment and structural support are essential for reliable operation, particularly on longer commercial doors.
When correctly installed, the rail system provides:
- Smooth trolley movement
- Stable operator-to-door connection
- Consistent door travel
- Controlled opening and closing
- Reduced unnecessary movement
- Reliable commercial operation
📦 Bundle Configuration
This composite product allows you to select the required rail length to create the core Axess Pro 1500 operator package.
Operator
- 1 × ATA AP1505 Axess Pro 1500 Commercial Door Operator
Select One Rail
- 1 × ATA Axess Pro 1500 4m Rail Kit – MC0067
or
- 1 × ATA Axess Pro 1500 5.5m Rail Kit – 92508
Additional controller, safety and access-control options can be selected separately where required.
Key Features
- Genuine ATA commercial door automation system
- Axess Pro 1505 commercial operator
- Designed for high-use sectional overhead doors
- Maximum sectional door area up to 25m²
- 373W three-phase induction motor
- Integrated inverter technology
- Standard 230–240V single-phase mains supply
- 60% duty cycle
- Variable-speed motor control
- Soft start and soft stop
- Intelligent door profiling
- M-ALPS magnetic limit system
- TrioCode128 remote technology
- Up to 511 transmitter registers
- Wired and wireless safety beam compatible
- Automatic closing capability
- 24/7 programmable operation with compatible Logic Control
- Service reminder system
- Multiple commercial controller options
- Low-headroom installation capability
- Choice of 4m or 5.5m rail
- Suitable for commercial and industrial applications
Specifications
- Manufacturer: ATA / Automatic Technology
- Operator: AP1505 Axess Pro 1500
- Product Type: Commercial Sectional Door Operator Bundle
- Door Type: Spring-Balanced Sectional Overhead Door
- Maximum Door Area: 25m²
- Input Supply: 230–240V AC Single Phase
- Motor Type: Three-Phase Induction
- Motor Power: 373W
- Rated Duty Cycle: 60%
- Motor Control: Integrated Inverter
- Limit System: M-ALPS Magnetic Automatic Limit Position System
- Radio Technology: TrioCode128
- Transmitter Capacity: Up to 511 four-button transmitter registers
- Safety Beams: Compatible
- Automatic Closing: Supported with appropriate safety equipment
- Rail Options: 4m or 5.5m
- 4m Rail Part Number: MC0067
- 5.5m Rail Part Number: 92508
- Application: Commercial & Industrial Sectional Doors
Compatibility
This bundle is designed for compatible ATA Axess Pro 1500 Series commercial sectional door installations.
Select the appropriate rail according to the sectional door height, required travel and track configuration.
Available Rail Options
- 4m Rail – MC0067
- 5.5m Rail – 92508
⚠️ Important – Not Compatible with Older Axess Pro Models
The rail kits supplied with this bundle are designed for the newer ATA Axess Pro 1500 Series and are NOT compatible with the older Axess Pro 1100 Series operator system.
The 4m MC0067 and 5.5m 92508 rails are not suitable for:
- ATA Axess Pro 1100
- ATA Axess Pro 1101
- ATA Axess Pro 1300
- ATA Axess Pro 1301
These earlier Axess Pro models use a different operator and rail system, and their components should not be considered interchangeable with the newer Axess Pro 1500 Series.
If you are replacing an existing Axess Pro operator or rail, check the model number of the existing equipment before ordering.
⚠️ Please Note
This is a composite product, allowing you to select the appropriate 4m or 5.5m Axess Pro 1500 rail together with the AP1505 operator.
The correct rail should be selected according to the door height, required operator travel and sectional door track configuration.
Wall controllers, safety beams, remote transmitters and other accessories are only included where specifically selected or stated as part of the bundle.
The maximum 25m² door rating assumes a correctly designed, spring-balanced and mechanically sound sectional overhead door. ATA describes the Axess Pro 1505 as a heavy-duty operator specifically intended for high-use commercial sectional doors.
Do not select these rails for an older ATA Axess Pro 1100, 1101, 1300 or 1301 operator.
If you are unsure which rail, controller or safety equipment is required for your installation, contact our Technical Support team on 1300 733 066 before ordering.
