Description

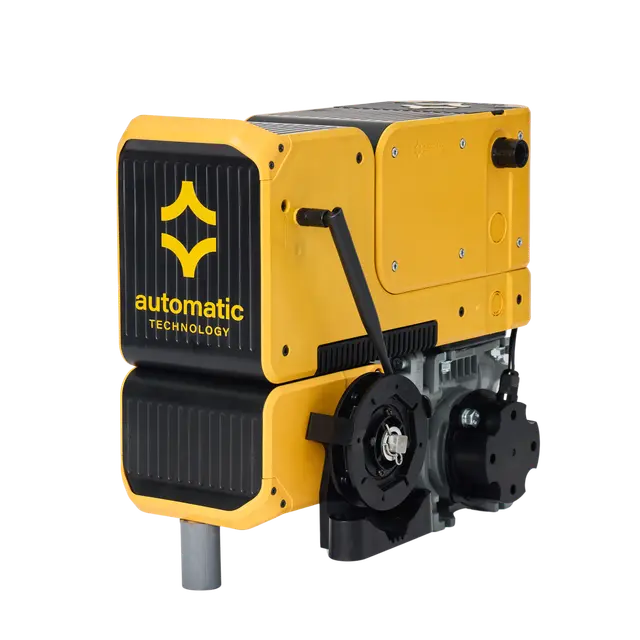

The ATA DAVE® Commercial Door Operator is a next-generation commercial and industrial door automation system developed by Automatic Technology to provide a powerful, highly adaptable solution across a wide range of door applications.
Rather than requiring different operator models for different door sizes, speeds, mounting arrangements and power supplies, DAVE has been designed as a highly configurable commercial operator platform. Its modular OmniVolt® power cartridge, Permanent Magnet Synchronous Motor, electronic positioning system and wireless-first controls allow the operator to be configured to suit a broad range of commercial installations.
Despite weighing under 12kg, DAVE can handle doors weighing up to 1000kg when configured with the Heavy Lift Kit, while supporting up to a 60% duty cycle as standard.
💪 Serious Commercial Lifting Performance
DAVE has been engineered for demanding commercial and industrial door applications while remaining considerably smaller and lighter than many traditional commercial operators.
Automatic Technology specifies that DAVE weighs under 12kg yet can lift doors weighing up to 1000kg when used with the appropriate Heavy Lift Kit.
This makes DAVE suitable for applications ranging from everyday commercial doors through to considerably larger and heavier industrial doors.
Typical applications include:
- Commercial sectional doors
- Industrial sectional doors
- Rolling shutters
- Roller doors
- Warehouse doors
- Factory doors
- Loading areas
- Commercial premises
- Industrial facilities
- High-use access doors
Final operator configuration depends on the door type, weight, balance, mounting arrangement and required operating speed.
⚡ OmniVolt® Swappable Power Cartridge
One of DAVE’s major innovations is its modular OmniVolt® power system.
Rather than manufacturing completely different operators for different electrical supplies, DAVE uses a removable power cartridge that is selected according to the available site power.
The Australian DAVE platform supports both single-phase and three-phase power supplies across 120–480V, depending on the installed cartridge.
Available configurations include:
- 120–240V Single-Phase Power Cartridge
- 400–480V Three-Phase Power Cartridge
The cartridge slides into the operator, allowing the same core DAVE operator platform to be configured for different sites and electrical supplies.
⚙️ Permanent Magnet Synchronous Motor
DAVE uses a Permanent Magnet Synchronous Motor (PMSM) rather than a conventional commercial operator motor arrangement.
This motor technology is also used in precision industrial automation and allows DAVE to deliver a combination of:
- High torque
- Precise control
- Compact dimensions
- Reduced operator weight
- Energy-efficient operation
- Accurate speed control
- Smooth acceleration and deceleration
Automatic Technology specifically attributes DAVE’s compact, lightweight and powerful design to its PMSM technology.
🧠 ProfileIQ® Adaptive Door Technology
DAVE incorporates Automatic Technology’s ProfileIQ® technology.
Rather than simply operating the door using fixed parameters, the system continually profiles door behaviour and adjusts operation as the mechanical characteristics of the door change over time.
For example, garage and commercial doors can gradually change as:
- Springs settle
- Door balance changes
- Mechanical components wear
- Operating resistance changes
- Environmental conditions affect the door
ProfileIQ® allows DAVE to adapt its operation as these characteristics change, helping maintain smooth and consistent door movement.
📍 SureTrack™ Absolute Positioning
DAVE uses an absolute positioning encoder system known as SureTrack™.
The system continuously tracks the precise position of the door throughout its travel, allowing the operator to accurately determine where the door is at all times.
This enables precise control of:
- Open position
- Closed position
- Intermediate positions
- Soft start
- Soft stop
- Acceleration
- Deceleration
- Door travel behaviour
Automatic Technology describes SureTrack™ as an Absolute Positioning Encoder that provides precise door location throughout the travel.
🚀 Adjustable Door Speed
DAVE provides adjustable opening and closing speeds rather than relying solely on mechanical sprocket selection to determine door travel speed.
The operating speed can be configured through the wall console, allowing the installer to tailor operation to the particular door and application.
This significantly reduces the traditional requirement to calculate and change sprocket ratios simply to achieve the desired door speed.
The system can also load default operating parameters according to the selected door type, which can then be adjusted to suit the installation.
🔄 Multiple Installation Configurations
DAVE has been designed to accommodate a variety of commercial door mounting arrangements.
Depending on the application, DAVE can be configured for:
- Wall mounting
- Hood mounting
- Chain and sprocket drive
- Shaft-to-shaft coupling
- Direct drive
- Direct-to-axle mounting
The operator can also be configured for left-hand or right-hand installation, providing considerably greater installation flexibility than a fixed-orientation commercial operator.
↔️ Left or Right-Hand Installation
DAVE is designed to accommodate both left-hand and right-hand installations.
This reduces the need to stock or specify different operator versions simply because of the available mounting position beside the door.
Automatic Technology states that DAVE can be changed from one side to the other in under five minutes.
📡 Wireless-First Installation
DAVE has been designed around a wireless-first control architecture.
The wall console and compatible accessories can communicate wirelessly, significantly reducing the amount of cabling and conduit traditionally required when installing a commercial door operator.
This can provide:
- Faster installation
- Reduced cabling
- Reduced conduit
- Cleaner finished installations
- Easier accessory installation
- Reduced labour requirements
Wired connections remain available where required, so installers can choose between wireless and conventional wired configurations depending on the application.
🎛️ Wireless Wall Console
The DAVE wall console provides the primary interface for setup, programming and operation.
Because the console can communicate wirelessly with the operator, programming can be performed from a convenient position rather than requiring the technician to continually access the operator itself.
The control system provides access to operating parameters including door configuration, limits, speed and other installation settings.
🛡️ Wireless Safety Beam Capability
DAVE supports Automatic Technology’s wireless-first photoelectric safety beam system.
Battery-powered wireless safety beams can be installed without running conventional control cabling between the operator and safety beam positions.
DAVE also supports wired safety devices where required, providing flexibility for both new installations and upgrades to existing commercial door systems.
⛓️ LiftMate™ Manual Chain Operation
DAVE incorporates Automatic Technology’s LiftMate™ Automatic Chain Engage Mechanism for manual operation.
When the manual hauling chain is pulled, the mechanism automatically engages the manual lifting system and locks out powered operation.
This allows the door to be manually operated when required while preventing the motor from operating simultaneously with the manual chain system.
🏭 Up to 60% Duty Cycle
DAVE is designed for demanding commercial applications and supports up to a 60% duty cycle as standard, subject to the door configuration and operating conditions.
This makes it suitable for commercial environments where the door may operate considerably more frequently than a conventional residential garage door.
Applications may include:
- Warehouses
- Factories
- Workshops
- Commercial car parks
- Loading areas
- Distribution facilities
- Commercial buildings
- Industrial facilities
Correct door balance and operator configuration remain essential when determining the appropriate duty cycle for a particular installation.
🏋️ Up to 1000kg Door Capability
With the appropriate Heavy Lift Kit, DAVE can be configured to operate doors weighing up to 1000kg.
The Heavy Lift Kit is intended for oversized and particularly heavy door applications and forms part of DAVE’s modular approach to commercial door automation.
Door weight alone does not determine operator suitability. Door type, balance, drum or shaft arrangement, operating speed, duty cycle and installation configuration must also be considered.
🔌 Expansion & External Control Capability
DAVE supports additional commercial control functions for installations requiring integration with external equipment.
An optional expansion board provides four programmable dry-contact relays that can be used with equipment such as:
- Traffic lights
- Flashing lights
- Sirens
- Loading dock equipment
- External signalling devices
- Other compatible automation equipment
The system also provides programmable and dedicated inputs for various commercial door functions.
🚨 Commercial Safety & Control Inputs
DAVE provides extensive control and safety integration capabilities for commercial installations.
Available functionality includes support for:
- Safety devices
- Bottom rail edge sensors
- Cable derailment monitoring
- Open input
- Close input
- Normally closed stop input
- Wicket door interlock
- Dock leveller interlock
- Programmable general-purpose inputs
- Fire or smoke baffle input applications
- Partial opening
- Automatic closing
This makes DAVE suitable for integration into more sophisticated commercial and industrial door systems.
🛑 Advanced Motor Braking
DAVE incorporates advanced electronic braking technologies to provide precise control of commercial doors.
The system can use regenerative braking to control a door that begins accelerating under its own weight during closing, while Zero Vector braking provides precise stopping control through the motor system.
These technologies help provide controlled door movement without relying solely on conventional mechanical braking methods.
📱 Bluetooth Diagnostics & Updates
DAVE supports wireless connection to Automatic Technology’s service tools for diagnostics and configuration.
Bluetooth connectivity can be used with the compatible technician application for functions including diagnostics and over-the-air software updates.
This provides technicians with a modern method of commissioning, maintaining and updating the operator.
🪶 Lightweight Commercial Operator
Despite its commercial lifting capability, DAVE weighs under 12kg.
Reducing operator weight provides significant practical benefits during installation, particularly where the operator must be mounted at height.
The compact design is intended to make DAVE practical for single-person installation while retaining the performance required for commercial applications.
🔧 Designed for Faster Installation
DAVE has been developed with installer efficiency as a major design consideration.
Features such as:
- Lightweight construction
- Left or right-hand installation
- Wireless wall console
- Wireless accessories
- Swappable power cartridge
- Electronic setup
- Adjustable operating speed
- Multiple mounting configurations
help reduce the amount of site-specific modification traditionally associated with commercial door operators.
🏆 Australian Designed & Award Winning
DAVE was designed in Australia by Automatic Technology in collaboration with Vert Industrial Design House and received a 2025 Good Design Award in the Commercial and Industrial category.
Automatic Technology has been developing garage door and access automation systems since 1978.
Key Features
- ATA DAVE® Commercial Door Operator
- Designed for commercial and industrial doors
- Compact operator weighing under 12kg
- Up to 1000kg door capability with Heavy Lift Kit
- Up to 60% duty cycle as standard
- Permanent Magnet Synchronous Motor (PMSM)
- OmniVolt® swappable power cartridge
- Supports compatible single-phase and three-phase supplies
- 120–480V power platform
- ProfileIQ® adaptive door profiling
- SureTrack™ absolute positioning
- Electronic travel limits
- Precise soft start and soft stop
- Adjustable opening and closing speeds
- Wireless-first architecture
- Wireless wall console
- Wireless safety beam capability
- Wired accessories also supported
- LiftMate™ automatic manual chain engagement
- Left or right-hand installation
- Multiple mounting configurations
- Optional Heavy Lift Kit
- Optional expansion board
- Commercial safety and control inputs
- Bluetooth diagnostics
- Over-the-air update capability
- Suitable for a broad range of commercial door applications
- Australian designed
Specifications
- Manufacturer: Automatic Technology Australia
- Brand: ATA
- Product: DAVE® Commercial Door Operator
- Application: Commercial & Industrial Door Automation
- Motor Type: Permanent Magnet Synchronous Motor (PMSM)
- Operator Weight: Under 12kg
- Maximum Door Weight: Up to 1000kg with appropriate Heavy Lift Kit
- Maximum Duty Cycle: Up to 60% as standard
- Power System: OmniVolt® Modular Power Cartridge
- Single-Phase Power Cartridge: 120–240V
- Three-Phase Power Cartridge: 400–480V
- Positioning: SureTrack™ Absolute Position Encoder
- Adaptive Technology: ProfileIQ®
- Manual Operation: LiftMate™ Automatic Chain Engage Mechanism
- Wall Console: Wireless / Wired Capability
- Safety Beams: Wireless and Wired Capability
- Installation Orientation: Left or Right Hand
- Mounting: Multiple Configurations
- Commercial Expansion Capability: Yes
- Bluetooth Connectivity: Yes
Compatibility & Applications
The ATA DAVE® has been designed as a highly flexible commercial operator capable of covering a broad range of commercial and industrial door applications.
Depending on the configuration and installation, DAVE can be used with compatible:
- Commercial sectional doors
- Industrial sectional doors
- Rolling steel doors
- Roller shutters
- Commercial roller doors
- Direct-drive door systems
- Chain and sprocket-driven doors
- Shaft-driven commercial doors
Installation can be configured using wall or hood mounting with chain and sprocket drive, shaft-to-shaft coupling or direct-to-axle mounting.
⚠️ Please Note
The ATA DAVE® is a configurable commercial door operator platform. The correct power cartridge, mounting arrangement, drive configuration and accessories must be selected according to the individual installation.
The 1000kg maximum door capability requires the appropriate Heavy Lift Kit and should not be interpreted as meaning every DAVE configuration is suitable for every 1000kg door.
Door weight, dimensions, balance, operating geometry, required speed, duty cycle, shaft arrangement and application must all be considered when specifying the operator.
Commercial doors must be correctly balanced and mechanically sound before automation. Appropriate safety devices should be installed according to the door application and applicable requirements.
The OmniVolt® power cartridge should also be selected to suit the electrical supply available at the installation.
