Airflow Commercial PanelDor

When ventilation is important, The Delta Airflow PanelDor range has been designed to not only meet, but exceed expectations, whilst maintaining a look of style and craftsmanship.

Door Data

  • Door Height *

    Delta PanelDors overlap the opening by 10mm in height, therefore the door height should be 10mm higher than the opening width. Size entered in millimetres (mm) Min: 1800Max: 5150

  • Door Width *

    Delta PanelDors overlap the opening by 60mm in width, therefore the door width should be 60mm wider than the opening width. Size entered in millimetres (mm)Min: 2000Max: 8000

  • Lifting System *

    If unknown, list "Standard Headroom"

  • Includes High Cycle Springs & 4mm Lifting Cables

  • Powder Coat Colour: *

    We strongly recommend a colour code be used to ensure colour accuracy Example: Basalt Matt 2607475M

  • Head panel powdercoated to mach door

  • Head Panel Height *

    Min: 150Max: 1000

  • Head Panel Width *

    Min: 2000Max: 8000

  • Side jambs powdercoated to match door

  • Side Jamb Type *

  • LH Side Jamb Length *

    Min: 1800Max: 5150

  • RH Side Jamb Length *

    Min: 1800Max: 5150

  • All taper measurements are viewed inside looking out. Fixed tapers greater than 60mm will be notched.

  • Taper Type *

    Fixed tapers incorporate slope into bottom panel. Hinged tapers are an additional panel to incorporate the slope. The minimum short side of a hinged taper is 100mm.

  • LH Door Height *

    Min: 1800Max: 5150

  • RH Door Height *

    Min: 1800Max: 5150

Product total

Options total

Grand total

SKU: N/A Category:

Description

DESCRIPTION:

The Frame Only PanelDor is manufactured from our standard 38mm frame, comprised of purpose-designed extruded aluminium rails & extruded aluminium stiles. Ready to accept a wide variety of cladding and panelling, allowing complete integration into the façade of the modern home.

SPECIFICATIONS:

  • Model: DAFL1
  • Type: Sectional Overhead Door
  • Tech Description: The PanelDor garage door is made up of a number of rigid sections that are hinged together and move vertically in the opening, then horizontally along the ceiling, guided by tracks and counterbalanced with springs.
  • Description: Extruded Aluminium Frame With Aluminium Inserts
  • Construction: 6063-T5 Extruded Aluminium
  • Frame Finish: Powder Coat Finish

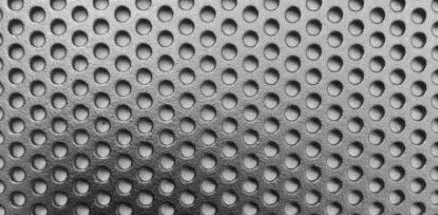

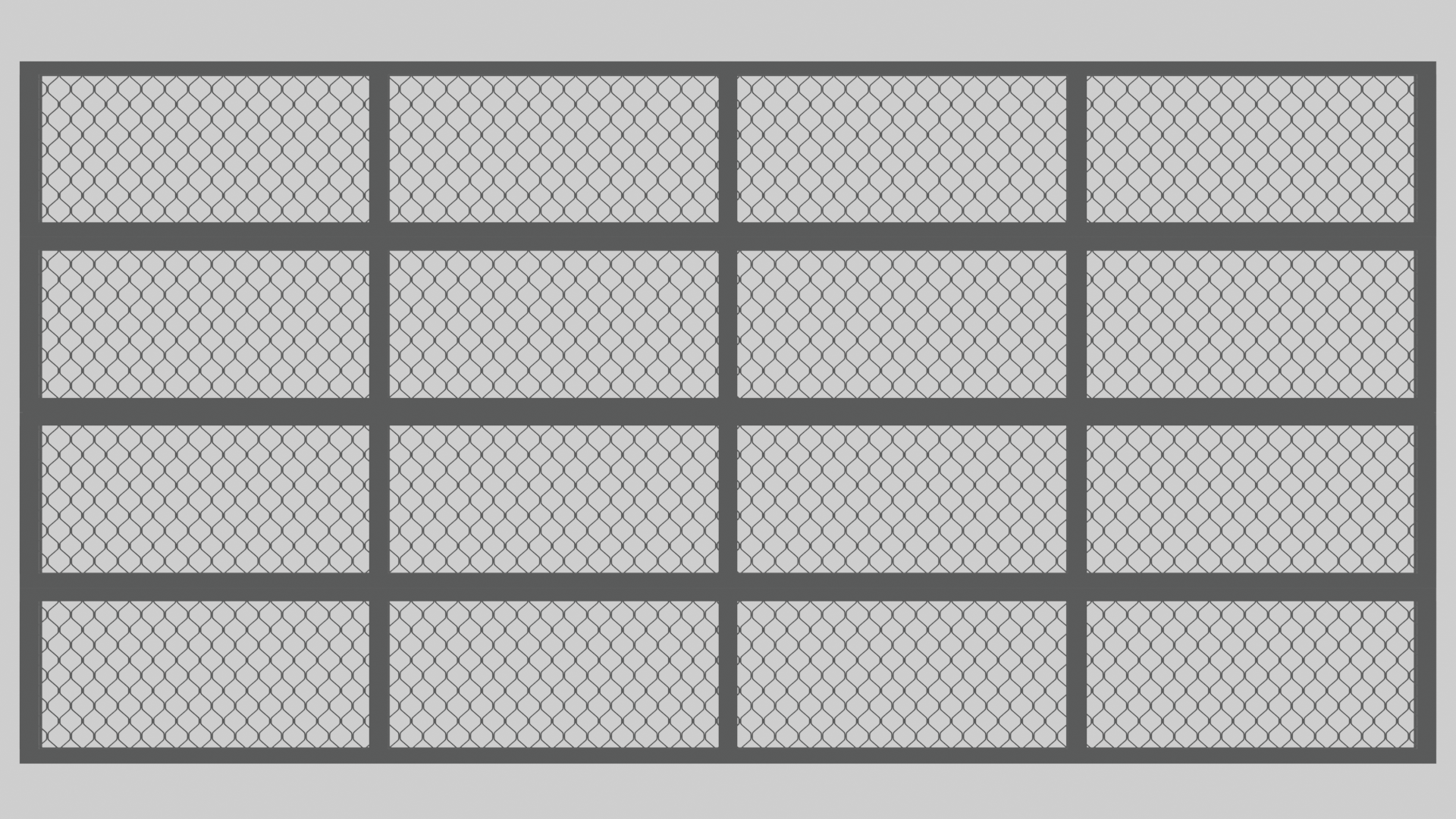

  • Panelling Options: 7mm Aluminium Grille Mesh Or 2.5mm Perforated Aluminium Mesh
  • Designs: Matrix Designs
  • Windows: Yes – Acrylic Windows
  • Max Height: 5150mm
  • Max Width: 8000mm
