Description

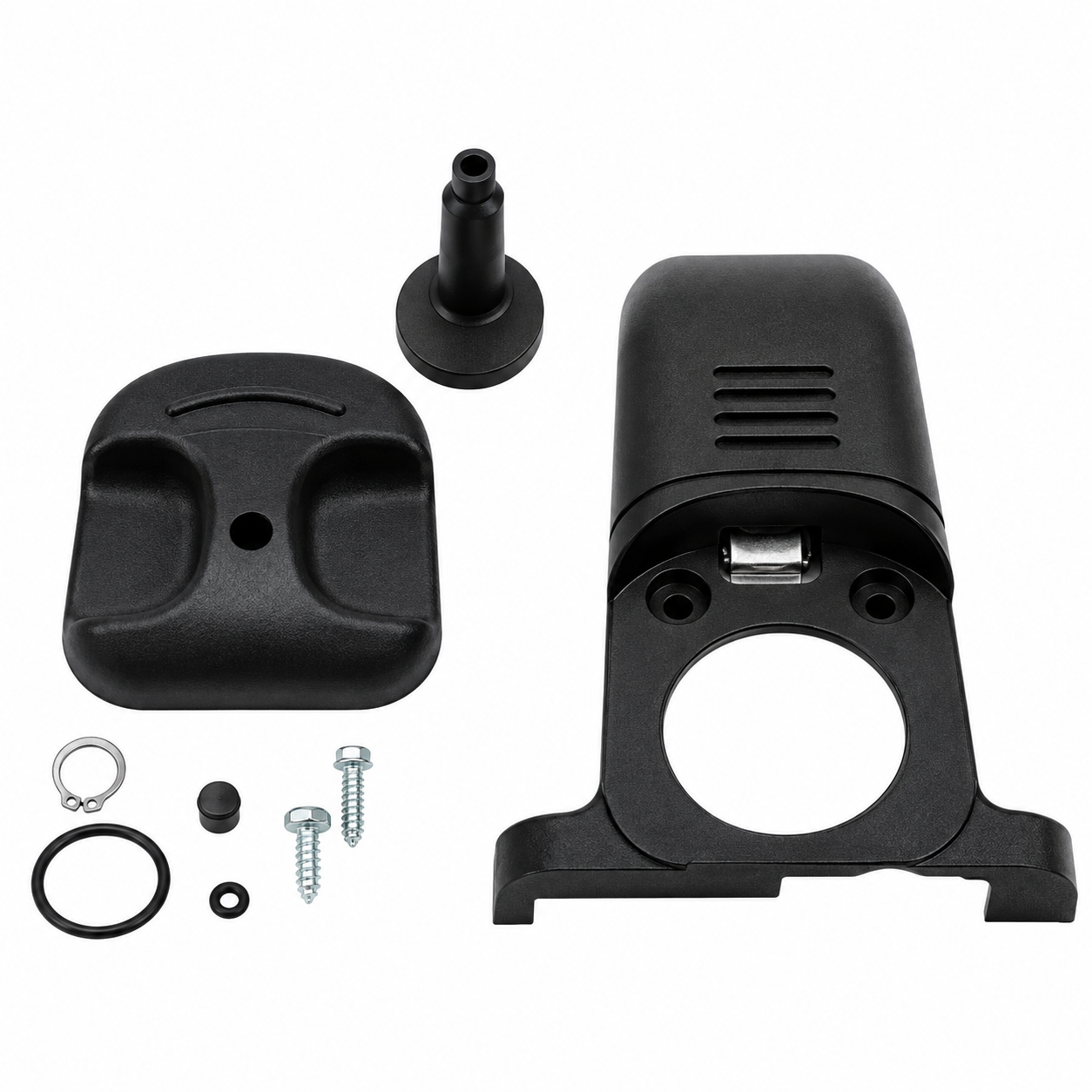

FAAC 413/415 Manual Release Set – 428403
Genuine FAAC replacement manual release set for compatible FAAC 413 and 415 electromechanical swing gate operators.
The 428403 forms part of the operator’s manual disengagement system, allowing the drive mechanism to be released so the gate can be moved manually when required.
Ideal for replacing a worn, damaged or faulty manual release assembly in an existing FAAC 413 or 415 operator.
FAAC Part Number: 428403
🔓 Manual Disengagement System
The manual release system allows the operator drive to be mechanically disengaged from the gate.
Once correctly released, the gate leaf can be moved manually without driving the operator motor.
Manual release may be required during:
- Mains power failures
- Operator faults
- Emergency access
- Maintenance
- Servicing
- Gate troubleshooting
⚙️ Genuine 413/415 Release Set
FAAC identifies part number 428403 as the:
413/415 Release Set
The assembly is fitted within the operator body and works with the other components of the manual release mechanism.
🔧 Replacement Spare Part
Replacement may be required where the existing release assembly has:
- Become worn
- Been physically damaged
- Become difficult to operate
- Failed to disengage correctly
- Failed to re-engage correctly
- Developed excessive movement
- Been damaged during servicing
If the manual release has become unusually difficult to operate, the surrounding release mechanism should also be inspected before fitting the replacement.
🔑 Works with the FAAC Release Lock & Key
The 428403 release set works together with the separate lock and key used to access the operator’s manual release mechanism.
Associated FAAC components include:
- Cylinder Lock – 7120885
- Manual Release Key – 7131005
These components are listed separately by FAAC and are not included with the 428403 release set unless specifically stated.
🧰 Genuine FAAC Spare Part
Part number 428403 is the genuine FAAC replacement release assembly specified in the spare-parts documentation for compatible 413 and 415 operators.
Using the correct replacement component maintains the original manual disengagement arrangement of the operator.
📦 What’s Included
Supplied as:
- 1 × FAAC 413/415 Manual Release Set
FAAC Part Number: 428403
The cylinder lock, release key and other surrounding release components are separate unless specifically stated as included.
Key Features
- Genuine FAAC spare part
- FAAC Part Number: 428403
- 413/415 manual release set
- Manual disengagement component
- Allows the operator drive to be manually released
- Suits compatible FAAC 413 operators
- Suits compatible FAAC 415 operators
- Replacement for worn or damaged release assemblies
- Suitable for operator repairs and refurbishment
Specifications
- Manufacturer: FAAC
- Brand: FAAC
- Product: 413/415 Manual Release Set
- Part Number: 428403
- Product Type: Manual Release Assembly
- Application: Swing Gate Automation
- Operator Type: Electromechanical
- Manual Disengagement: Yes
Compatibility
Compatible with applicable versions of:
- FAAC 413
- FAAC 415
- FAAC 415 L
- FAAC 415 LS
- FAAC 415 L LS
The 428403 release set appears in FAAC spare-parts documentation across the compatible 413 and 415 operator families.
⚠️ Please Note
This listing is for the FAAC 428403 Manual Release Set only.
The cylinder lock, manual release key and other surrounding components are separate unless specifically stated as included.
FAAC lists the following related components separately:
- 7120885 – Cylinder Lock
- 7131005 – Manual Release Key
- 60202215 – Setting Wheel & Release Lever Group
If the existing release set has failed because the internal mechanism has become seized or excessively difficult to operate, the underlying problem should be rectified before fitting the replacement part.
Ensure the operator is correctly re-engaged before returning the automatic gate to powered operation.
If you are unsure whether the 428403 Manual Release Set suits your FAAC swing gate operator, use our compatibility checker or contact our Technical Support team on 1300 733 066.
