Description
The Automatic Technology ATS-1 combines affordable garage door control with the smooth and reliable operation that Automatic Technology is known for.
The ATS-1 is designed for domestic, sectional single or double garage doors up to 15m2.
Featuring a 700N DC Motor with soft start and stop &courtesy LED lights.
Designed to make garage door automation easy.
Key Features
- Auto-reverse functionality
The ATS-1 opener offers an auto-reverse function giving you peace of mind that the door will reverse if it comes into contact with an obstruction. It can also detect any unauthorised attempts to force the door open and resist entry accordingly. - Soft start & stop technology
By utilising a gradual acceleration and deceleration technique at the beginning and end of each cycle, the ATS-1 opener minimises the pressure on both the door and the opener. This helps to prolong the door’s lifespan while also providing ensuring a continuous quiet performance. - Fast, powerful motor
The ATS-1’s DC motor generates a peak pulling force of 700N, allowing it to reliably lift garage doors up to 100kg of weight. - Vacation Mode
Never fret that someone is breaking in to your home again with ATS-1’s Vacation Mode feature. Once in Vacation Mode the ATS-1 opener will be completely locked to all other remotes while you’re away until you return and use your Master remote to unlock it. - Service Reminder
Similar to a car, your garage opener needs to undergo regular maintenance to ensure its warranty and functionality are kept in tip-top condition. However, even better than your car, Automatic Technology openers come equipped with an audio and visual warning system that notifies you when maintenance is required, making it easier to keep up with maintenance.
Specifications
| Power | Power Supply | 230V – 240V. 50Hz |
| Rail Headroom | 25mm | |
| Minimum headroom | 57mm | |
| Short Term Peak force | 700N | |
| Rated Force | 400N/40kg | |
| Nominal force | 200N/20kg | |
| Typical Travel Speed | 180mm / per second | |
| Transmitter System | Receiver Type | Multi-frequency UHF FM |
| Receiver Code Storage Capacity | 64 X 4-button Transmitters | |
| Coding System | Triocode 128 | |
| Coding Type | 128 Bit Rolling Code | |
| Additional Features | Number of Code combinations | 3.4 x 10³⁸ Codes |
| Transmitter Battery | CR2032 (3 Volts) | |
| Courtesy Light | LED (Light Emitting Diodes) | |
| Warranty | 5 year / 10,000 cycles |

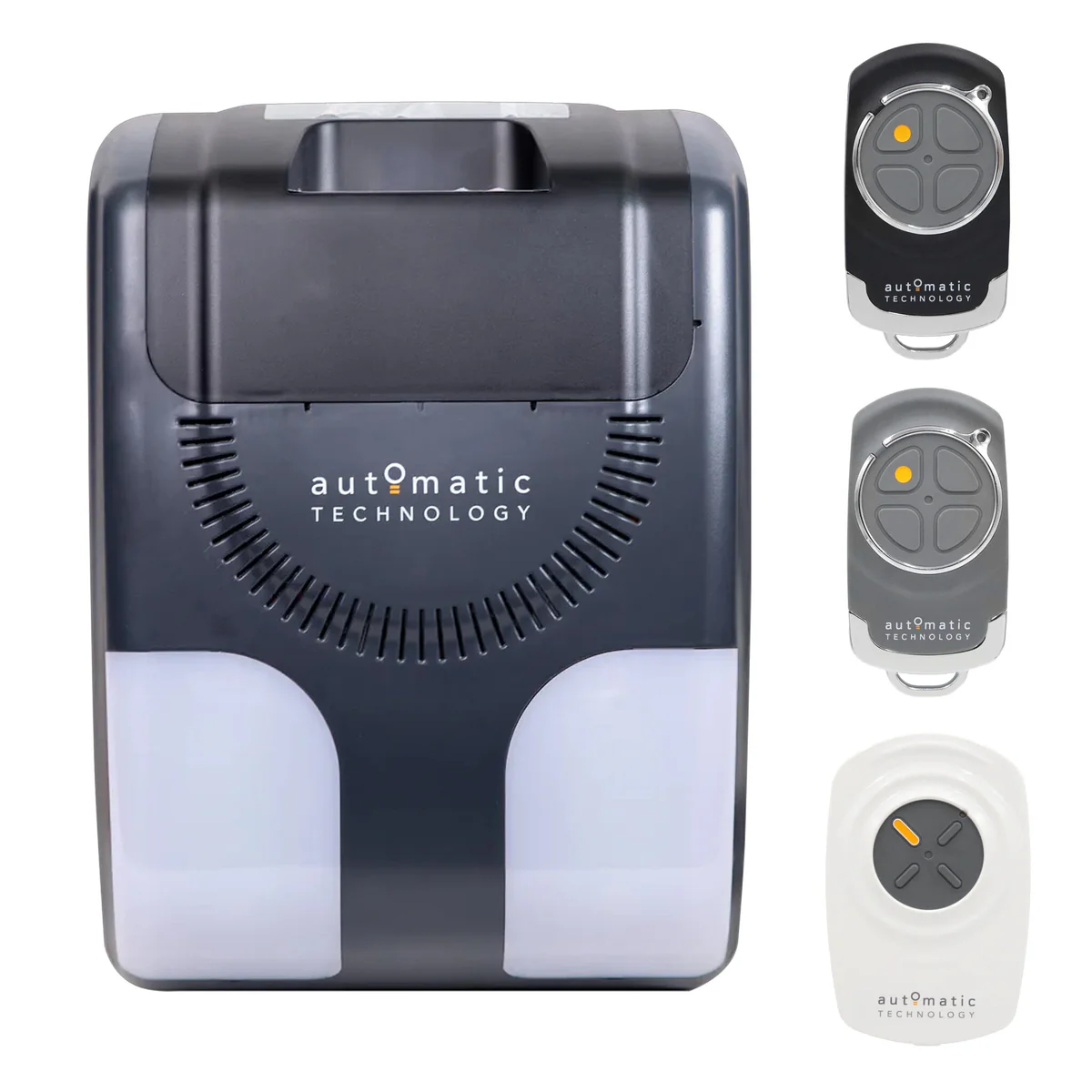

Whats in the box?
- Opener Drive Unit
- 2x TrioCode128 Keyring Transmitters
- 1x TrioCode128 Wireless Wall Controller
Optional Accesories
- Safety Beams
Automatic Technology’s wireless Safety Beams provide an added layer of protection. They detect when an object passes through and breaks the infrared beam, causing the door to stop and reverse its movement, thus preventing any potential damage or harm. And, installing them is simple.
Warranty
5 Years/10,000 cycles warranty
The ATS-1 Opener comes with a five-year warranty (or 10,000 open and close cycles), giving you total peace of mind that your door will go up and down consistently.
Frequently Asked Questions
- How do I activate/deactivate my remote?
Your user manual will have instructions on how to activate and deactivate your remotes. Click here to view our user manual. - Why is my opener beeping and flashing?
The most common reason for your opener to beep or flash is because it is due for a scheduled maintenance check. So your garage door is telling you it’s time for a service! Click here to book a service. - How to introduce an additional remote control for your Automatic Technology ATS-1 opener.
CLICK HERE to watch a quick tutorial on how to add an additional remote control for your Automatic Technology Easy Roller Door opener. - How to introduce an additional wall button for your Automatic Technology ATS-1 opener.
CLICK HERE to watch a quick tutorial on how to code an additional wall button for your Automatic Technology Easy Roller garage door opener.
