Description
The ATA Smart Phone Control Kit – Part No. 14880 is a genuine Automatic Technology smart connectivity package designed to add smartphone control and remote monitoring to compatible ATA garage door and gate operators.
The kit combines the ATA Network Smart Hub with an NTR-1V1 Network Transceiver, power supply and installation hardware, providing the primary components required to connect one compatible operator to the ATA smartphone control platform. ATA documentation identifies the Smart Hub as Order No. 14880 and the included NTR-1V1 transceiver kit as Order No. 14818.
Once installed and configured, users can remotely control and monitor their compatible garage door or gate through the Automatic Technology smartphone system.
📱 Smartphone Control for Your Door or Gate
The ATA Smart Phone Control Kit allows a compatible garage door or gate operator to be controlled through a smartphone.
Supported functionality includes:
- Remote opening and closing
- Door or gate status monitoring
- Smartphone operation
- Activity monitoring
- Status notifications
- Remote access while away from the property
- Control alongside existing handheld remotes
A suitable Wi-Fi and internet connection is required at the premises for remote functionality.
🌐 ATA Network Smart Hub
The Network Smart Hub provides the central network connection for the ATA Smart Phone Control system.
The Smart Hub remains inside the property and communicates with the NTR-1V1 Network Transceiver installed at the compatible garage door or gate operator.
ATA specifies that the Smart Hub must remain connected to power at all times after setup.
📡 NTR-1V1 Network Transceiver Included
The 14880 kit includes an NTR-1V1 Network Transceiver for connection to one compatible operator.
The transceiver provides communication between the garage door or gate operator and the Network Smart Hub, allowing operating commands and supported status information to be exchanged.
ATA’s installation documentation identifies the NTR-1V1 transceiver package as including:
- NTR-1V1 Network Transceiver
- 400mm VR12 Timing Harness
- Mounting screws
- Velcro mounting strip
🚪 Controls One Door or Gate
The ATA Smart Phone Control Kit – 14880 is supplied with one NTR-1V1 Network Transceiver and is therefore configured to connect one compatible garage door or gate operator.
If you have an additional compatible garage door or gate that you would also like to control through the ATA smartphone system, an additional compatible network transceiver can be purchased separately.
The same Smart Hub can be used as part of a multi-opener installation with additional compatible transceivers.
➕ Add Another Door
Already have the 14880 Smart Phone Control Kit and want to connect another compatible opener?
Click here to purchase an additional NTR-1V1 Network Transceiver for another compatible garage door or gate operator.
Not sure which transceiver you require? Contact our Technical Support team on 1300 733 066 and we can help you select the correct equipment for your operator.
🌎 Control & Monitor While Away
Smartphone connectivity allows you to interact with your compatible garage door or gate even when you are away from the property.
This can be useful for:
- Checking whether the garage door has been left open
- Opening the door when you do not have a remote
- Providing access to an authorised person
- Monitoring garage door or gate activity
- Checking the status of your door or gate
- Managing access while away from home
The ATA system can also provide alerts relating to door status and obstruction conditions and maintain an activity log showing operation history.
🏠 Upgrade Compatible Existing ATA Openers
The 14880 kit provides a convenient way to add smartphone functionality to selected compatible ATA garage door and gate operators.
For compatible equipment, this means an existing opener can gain smart functionality without replacing the complete automation system.
This makes the kit ideal for:
- Existing compatible ATA garage door openers
- Existing compatible ATA gate operators
- Smart home upgrades
- Replacement Smart Hub installations
- Residential access automation
- Properties requiring remote garage or gate access
🔄 Existing Remotes Continue to Operate
Adding the ATA Smart Phone Control Kit does not replace the normal remote control functionality of the opener.
Existing compatible handheld transmitters, wall controls and other local access devices can continue to operate alongside the smartphone control system.
Smartphone control simply provides an additional method of operating and monitoring the compatible door or gate.
📶 Wi-Fi & Internet Connection Required
A suitable Wi-Fi and internet connection is required at the premises where the Smart Hub is installed.
The Smart Hub must also remain connected to power for remote smartphone functionality to remain available.
If the internet connection becomes unavailable, remote smartphone functionality may be temporarily unavailable while conventional local controls can continue to operate the compatible opener.
🛡️ Safety Beams for Smart-Controlled Garage Doors
Smartphone control allows a garage door to be operated remotely when the user may not have direct line-of-sight of the door.
This makes appropriate obstruction detection particularly important.
Automatic Technology’s installation documentation specifically warns that a connected door or gate can operate when it is outside the user’s line-of-sight and may therefore operate unexpectedly.
⚠️ Safety Beams Required for Smart Control
Australian requirements introduced from 1 December 2020 require safety beams when a new smart opener or Smart Hub is installed. ATA supports this requirement because remote smart operation may occur without direct line-of-sight of the garage door.
A compatible safety beam system should therefore be installed and correctly commissioned as part of a smart-controlled garage door installation.
🔎 Check Your Opener Before Ordering
Not every version of an ATA opener is necessarily compatible simply because the model name appears in the compatibility list.
Published compatibility information notes that supported openers generally need to be later network-compatible versions, with some suppliers specifying units manufactured after January 2016.
If you are unsure whether your opener is compatible, contact our Technical Support team on 1300 733 066 with your opener model and serial number before ordering.
🧩 Expandable Smart Control System
One advantage of the ATA Smart Hub architecture is the ability to connect additional compatible automation equipment using additional network transceivers.
For example, a property may have:
- Garage Door 1
- Garage Door 2
- Driveway Gate
Each compatible operator requires the appropriate network transceiver, while the connected system can be managed through the ATA smartphone platform.
Additional NTR-1V1 transceiver kits are specifically available for connecting the ATA Smart Phone Kit to multiple compatible openers.
📦 What’s Included

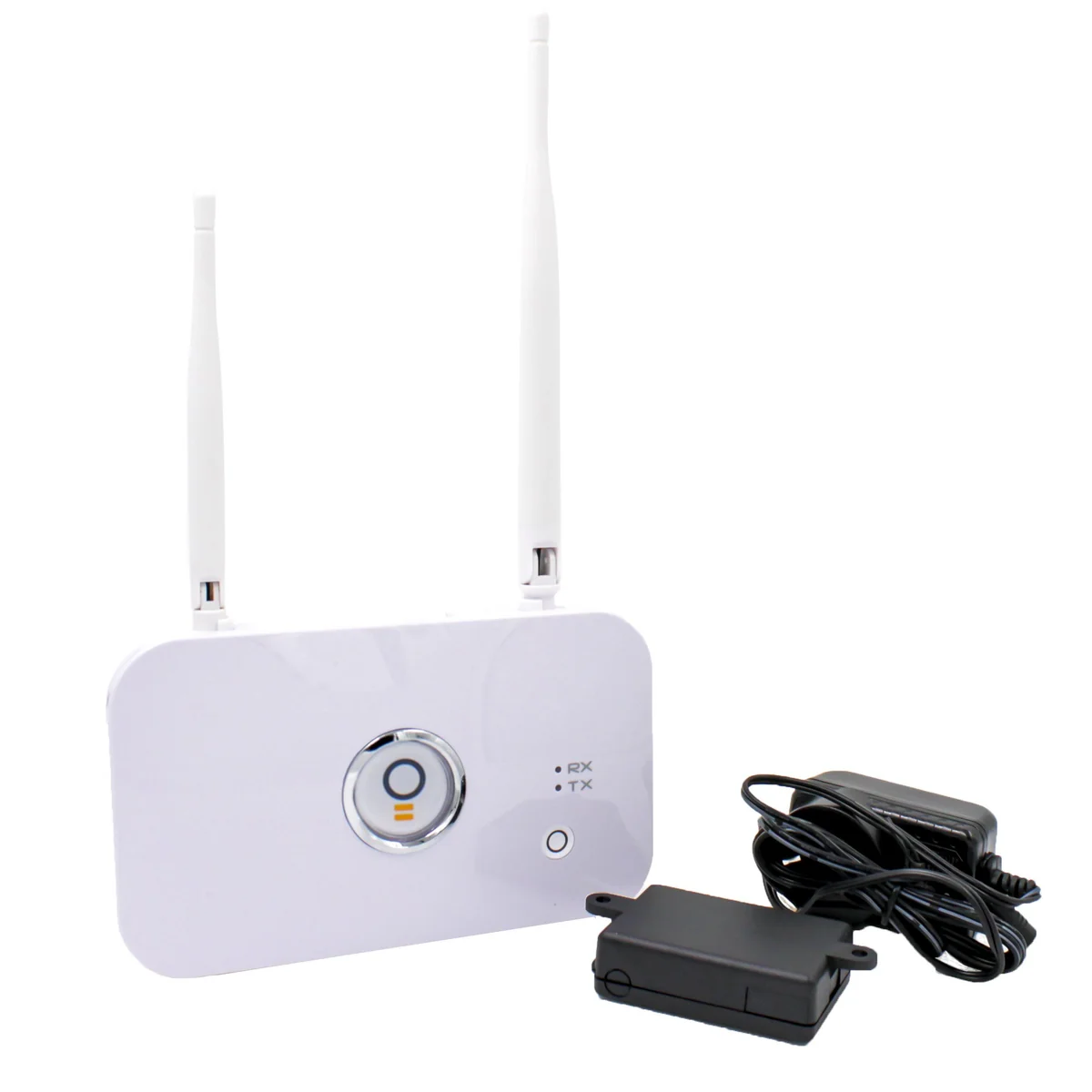

The ATA Smart Phone Control Kit – 14880 includes:
- 1 x ATA Network Smart Hub
- 1 x NTR-1V1 Network Transceiver
- 1 x 240V Smart Hub Power Supply
- 1 x Smart Hub Wall Mounting Bracket
- 1 x 400mm VR12 Timing Harness
- Smart Hub mounting hardware
- Transceiver mounting hardware
ATA’s installation documentation confirms these components for the Network Smart Hub and NTR-1V1 system.
The included NTR-1V1 transceiver provides connection for one compatible operator.
Key Features
- Genuine Automatic Technology Smart Phone Control Kit
- ATA Part No. 14880
- Network Smart Hub included
- NTR-1V1 Network Transceiver included
- Controls one compatible door or gate as supplied
- Additional transceivers available for additional compatible operators
- Remote smartphone operation
- Door or gate status monitoring
- Smart notifications
- Activity monitoring
- Compatible with selected ATA garage door openers
- Compatible with selected ATA gate automation
- Existing compatible remotes continue to operate
- Suitable for upgrading compatible existing operators
- Wi-Fi and internet connection required
- Smart Hub power supply included
- Wall mounting hardware included
- Safety beams required for applicable smart-controlled garage doors
Specifications
- Manufacturer: Automatic Technology Australia
- Brand: ATA
- Product: Smart Phone Control Kit
- Part Number: 14880
- Smart Hub: Included
- Transceiver: NTR-1V1
- Number of Transceivers Included: 1
- Operators Connected as Supplied: 1
- Additional Operators: Additional compatible transceiver required
- Smart Hub Power Supply: 240V
- Smartphone Control: Yes
- Remote Status Monitoring: Yes
- Internet Connection Required: Yes
- Application: Garage Door & Gate Automation
- Genuine ATA Accessory: Yes
⚠️ Please Note
The ATA Smart Phone Control Kit – 14880 includes one NTR-1V1 Network Transceiver and is supplied to connect one compatible garage door or gate operator.
To connect another compatible operator, an additional appropriate network transceiver is required.
Click here to purchase an additional transceiver for another door.
If you are unsure which Smart Phone Control Kit or transceiver is compatible with your opener, contact our Technical Support team on 1300 733 066 before ordering.
For smart-controlled garage door applications, compatible photoelectric safety beams should be installed and correctly commissioned in accordance with applicable Australian safety requirements.
